Single-cabinet 125 kW / 265 kWh system for peak shaving or PV-plus-genset hybrid sites. MPPT, ATS and isolation transformer integrated to cut integration cost.
2 capacities on the Nezha BS07-265-ES platform.
| Nezha BS07-265-ES range | BS07-265-ES-X | BS07-265-ES-G |
|---|---|---|
| Nominal energy | 265.27 | 265.27 |
| Usable energy | — | — |
| Nominal voltage | — | — |
| Cell configuration | 3.2V 314Ah / 1P264S | 3.2V 314Ah / 1P264S |
| Max. charge / discharge current | — | — |
| Cycle life | ≥8000 cycles (25C, 0.5C, 90% DOD, 70% EOL) | ≥8000 cycles (25C, 0.5C, 90% DOD, 70% EOL) |
| Weight | 2680 kg | 3350 kg |
| Dimensions (W×D×H) | 1095*1520*2395 mm | 1758*1476*2135 mm |
| IP rating | IP54 | IP54 |
| Scalability | — | — |
Values per the current published data sheet. Confirm the final configuration and certificate copies for your destination market at quotation stage.

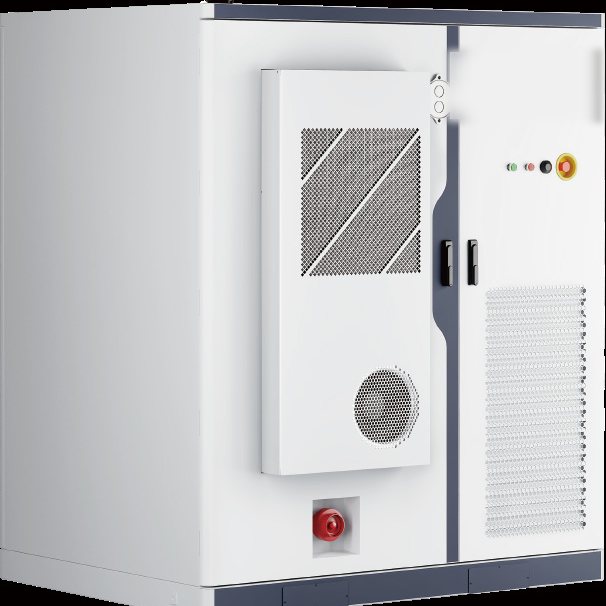

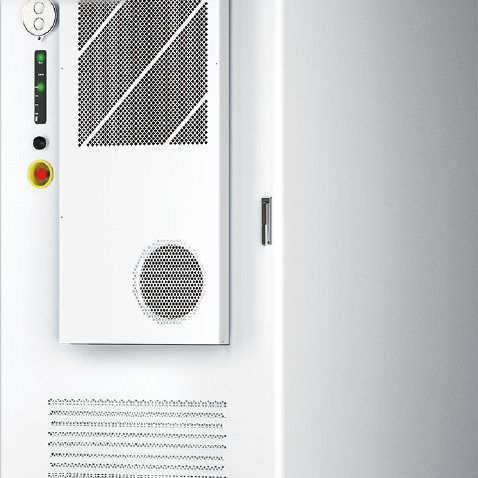

BS07-265-ES-X for grid-tied peak shaving and valley filling; BS07-265-ES-G adds 120 kW PV input, an ATS and a 150 kVA isolation transformer for PV + diesel + grid sites.
Automatic transfer between grid, PV and genset with black-start capability and islanding support.
Cluster-level aerosol plus cabin-level water mist, with multi-sensor early warning (<500 ms response).
2.68 t / 3.35 t and ~1.1–1.8 m cabinet widths, quoted with weight and dimensions so site preparation is not a surprise.
Sample lead time 7–10 days with your artwork. We confirm the exact model, voltage class and certificate set for your market before the order is placed.
