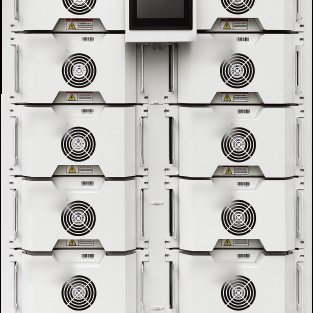

Floor-standing high-voltage battery rack for indoor commercial and industrial use. 112.53 to 225.07 kWh per rack, up to 10 racks in parallel, 314 Ah cells.
4 capacities on the EnerFlex-2.0 platform.
| EnerFlex-2.0 range | BS09-112-R/7S | BS09-160-R/10S | BS09-192-R/12S | BS09-225-R/14S |
|---|---|---|---|---|
| Nominal energy | 112.53 kWh | 160.76 kWh | 192.92 kWh | 225.07 kWh |
| Usable energy | 101.28 kWh | 144.69 kWh | 173.62 kWh | 202.56 kWh |
| Nominal voltage | 358.4 | 512.0 | 614.4 | 716.8 |
| Cell configuration | 3.2V 314Ah / 1P16S | 3.2V 314Ah / 1P16S | 3.2V 314Ah / 1P16S | 3.2V 314Ah / 1P16S |
| Max. charge / discharge current | 157A | 157A | 157A | 157A |
| Cycle life | ≥8000 cycles (25C, 0.5C/0.5C, 90% DOD, 70% EOL) | ≥8000 cycles (25C, 0.5C/0.5C, 90% DOD, 70% EOL) | ≥8000 cycles (25C, 0.5C/0.5C, 90% DOD, 70% EOL) | ≥8000 cycles (25C, 0.5C/0.5C, 90% DOD, 70% EOL) |
| Weight | 1015 kg | 1400 kg | 1630 kg | 1900 kg |
| Dimensions (W×D×H) | 1100*792*1221 mm | 1100*792*1725 mm | 1100*792*1974 mm | 1100*792*2226 mm |
| IP rating | IP20 | IP20 | IP20 | IP20 |
| Scalability | Up to 10 units in parallel | Up to 10 units in parallel | Up to 10 units in parallel | Up to 10 units in parallel |
Values per the current published data sheet. Confirm the final configuration and certificate copies for your destination market at quotation stage.
Sealed front panels and removable, reusable dust filters keep the cabinet clean in workshops, supermarkets and factory halls — and the wiring stays hidden.
Forced-air design reduces the temperature difference across the rack by 35% and the temperature rise by 32%, which is what actually sets pack life.
External communication module and remote screen let a technician read the battery state without opening the cabinet.
1015 kg to 1900 kg — we publish weight and footprint per SKU so you can check floor loading before you quote.
Sample lead time 7–10 days with your artwork. We confirm the exact model, voltage class and certificate set for your market before the order is placed.
